Description:

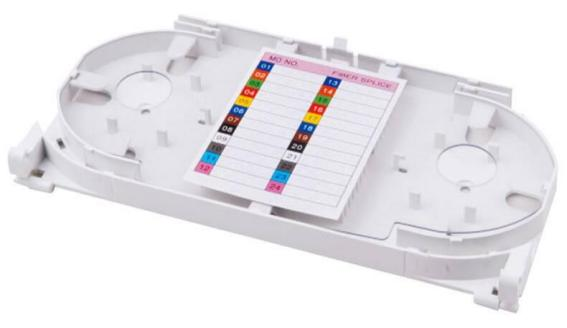

Ribbon Splice Tray
Introduction:
Fiber optic splice trays are designed to provide a location to store and to protect the fiber cables and the splices.
Fiber optic splice trays are located at intermediate points along a route where cables are required to be joined or at the termination and patch panel points at the end of fiber cable runs.
Splice trays normally hold up to 12 splices, and several trays are used together to splice a large fiber cable. Each tray provides space for mounting fiber splice protectors and excess fiber.
Introduction:
Fiber optic splice trays are designed to provide a location to store and to protect the fiber cables and the splices.
Fiber optic splice trays are located at intermediate points along a route where cables are required to be joined or at the termination and patch panel points at the end of fiber cable runs.
Splice trays normally hold up to 12 splices, and several trays are used together to splice a large fiber cable. Each tray provides space for mounting fiber splice protectors and excess fiber.
Feature:
White color and grey color optional
Use for single-mode or multimode fiber
Durable injection-molded plastic trays and covers
Center holes for mounting of the tray
12-fiber and 24-fiber splice trays installable in Wall Mount enclosures & splice clusures
Application:
Fiber optic distribution frame
FTTH terminal box
Fiber optic splice closures
Optical cabinet
Specification
| Model | BES-RST0347 |
| Material | ABS+PC |
|
Working Wavelength(nm) |
850nm, 1310nm, 1550nm |
| Return Loss | PC≥40dB UPC≥50dB APC≥60dB |
|
Operation Temperature(°C) |
-5( °C) +40 |
| Dimension(mm) | 225 x 1 10 x 12 |
| Weight(g) |
100 |
